| Brand: | YOHA Solar |
| Model: | YHEL-2400 |
| Unit: | unit |

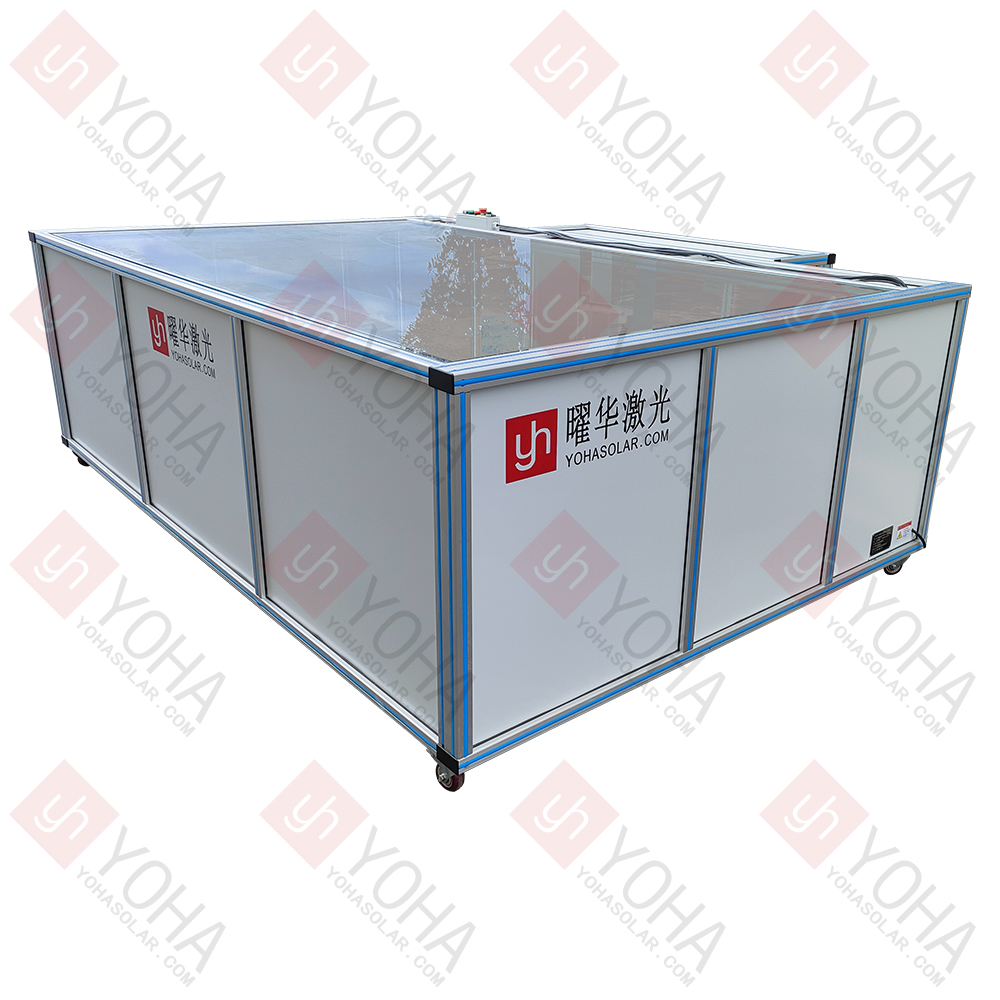

The Solar Module EL Defect Detector is a critical quality control device that utilizes the principle of electroluminescence (EL) imaging. It operates in a darkroom environment by applying an electric current to a powered solar cell module, causing it to emit light actively. A high-sensitivity infrared camera captures the internal luminescence image, enabling non-contact, non-destructive automatic identification, localization, and classification of internal microscopic defects within the module. These defects include micro-cracks, fragments, finger interruptions, cold soldering, black core cells, sintering defects, material inhomogeneity, and more.
Core Technology: Electroluminescence Non-Destructive Imaging: Leverages the electroluminescence (EL) principle to image powered solar cell modules. Clearly visualizes internal microscopic structures and defects without disassembly or contact, enabling non-destructive inspection.
High Efficiency & Accuracy: Automated Intelligent Recognition: Equipped with a high-sensitivity infrared camera and professional image processing software. Capable of automatically and rapidly scanning, capturing images, and intelligently identifying, locating, and classifying various complex defects (such as micro-cracks, fragments, finger interruptions, cold soldering, black core cells, etc.). Significantly enhances inspection efficiency and accuracy, suitable for online or offline detection.
High-Resolution Imaging: Precise Defect Localization: Employs a high-resolution imaging system combined with a darkroom environment design. Ensures captured EL images possess exceptional clarity and contrast, clearly revealing micron-level cracks, fine finger interruptions, and other subtle defects. Achieves precise defect localization, providing reliable basis for quality judgment.
Comprehensive Quality Control: Enhanced Yield Rate: Covers the entire process from raw material acceptance, production process monitoring, finished product final inspection, to power station operation and maintenance inspection. A key device for ensuring the long-term reliability and power generation performance of solar modules. Effectively reduces production losses and improves product yield and quality by early detection and elimination of defective products.
| Item | Parameter |
|---|---|
| Model | YHEL-2400 |
| Applicable Process | Defect detection for pre-lamination and post-lamination components |
| Testing Specification | Mono-crystalline, Poly-crystalline cell modules |
| Camera Type | YOHA Dedicated Camera |
| Resolution | 24 million/48 million pixels |
| Shooting Mode | Single/Dual Camera Mode |
| Sensitivity | Detects cracks with width less than 0.03mm |
| Effective Testing Area | 2600*1500mm |
| Stabilized Power Supply | 60V/20A |
| Image Acquisition Time | 1~60s (Adjustable) |
| Power Supply | 220V/50HZ |
| Equipment Dimensions | 2900×1940×1155mm |
1. Full-Process Quality Monitoring in PV Module Production: This device is a core quality inspection tool on production lines, applied at critical stages such as raw material (cell) incoming inspection, post-soldering/layup, pre/post-lamination encapsulation, and final finished product shipment inspection. By detecting internal defects in real-time and non-destructively, it strictly controls quality at each stage, preventing defective products from flowing into the next process or reaching customers, significantly improving production yield and product reliability.
2. PV Power Station Component Receiving Inspection & Installation QC: Used during the PV power station construction phase for batch sampling or full inspection of delivered solar modules, verifying if internal damage like micro-cracks occurred during transportation or handling. It can also be used for re-inspection after modules are mounted on racks (installation stress testing) to ensure the installation process caused no damage, laying a quality foundation for the long-term stable operation of the power station and avoiding power generation loss or safety hazards due to hidden defects.
3. PV Power Station O&M Fault Diagnosis & Performance Assessment: As an essential diagnostic tool for power station operation and maintenance, used for regular inspections or fault troubleshooting. When abnormal performance degradation (e.g., reduced output) or issues like hot spots are detected, EL inspection can quickly and visually locate internal defects (such as severe micro-cracks, fragments, PID effect, cell failure, soldering failure, etc.), accurately determine the cause and severity of the fault, and guide repair or replacement decisions to maximize power generation revenue and asset value.
4. R&D and Process Improvement Support: In R&D laboratories and process improvement departments for PV modules and cells, the EL detector is a critical device for evaluating the reliability of new materials, structures, and processes (e.g., novel cell technologies, different soldering/encapsulation processes). By comparatively analyzing EL images of modules under various conditions, it facilitates in-depth research on defect formation mechanisms, distribution patterns, and their impact on performance, providing robust data support for continuously improving module design, optimizing manufacturing processes, and enhancing product lifespan.
1. Strict Electrical Safety Operation: The device involves applying current to the module to induce luminescence; strict adherence to electrical safety regulations is mandatory. Operators must wear insulated gloves, ensure correct and secure wiring of the module under test to avoid short circuits or electric shock risks. Always disconnect the power supply before subsequent operations (e.g., moving the module). Strictly prohibited in damp environments or when the module has visible damage.
2. Ensure Darkroom Light-Tightness: EL imaging is extremely sensitive to ambient light. Inspection must be conducted in a completely light-tight darkroom or dark box. Carefully check the sealing of the darkroom door, observation window, cable entry points, etc., before inspection to eliminate any external light interference (including indicator lights, screen glow, etc.). Failure to do so will severely degrade image quality, leading to missed defects or misjudgment.
3. Standardized Operation & Equipment Protection: Handle the module under test gently when placing it to avoid causing new micro-cracks or damage. Exercise extreme caution when operating the high-sensitivity infrared camera to prevent lens impact. Operate strictly according to the equipment manual to avoid overload or incorrect parameter settings (e.g., current level, exposure time). Keep the equipment clean, especially the camera lens and loading platform.
4. Thorough Pre-Inspection Preparation: Ensure the module under test is at room temperature (avoid temperatures too high or low affecting luminescence characteristics). Check that the module surface is clean, dry, and free of large stains or water droplets obstructing the view. Precisely set inspection parameters (e.g., applied current value, voltage range) based on module specifications (power, current characteristics). Improper parameters may cause overexposed/underexposed images or failure to effectively reveal defects.
5. Emphasize Image Interpretation & Software Maintenance: Interpreting EL images requires professional knowledge and experience. Operators must be trained to recognize the characteristic appearance of different defects (e.g., patterns of micro-cracks, shape of black core cells, linearity of finger interruptions) and to distinguish real defects from image artifacts (e.g., noise, interference patterns). Regularly calibrate the equipment and update the image analysis software to ensure detection algorithms and defect recognition libraries remain up-to-date, improving judgment accuracy.
6. Regular Maintenance & Professional Servicing: Establish and implement a regular equipment maintenance plan. This includes cleaning optical components (lenses, filters), checking electrical connection reliability, and calibrating light sources and camera parameters. For deep maintenance or repair of critical components (e.g., infrared camera, power modules), engage the equipment supplier or professional technicians to avoid self-disassembly causing equipment damage or performance degradation.
